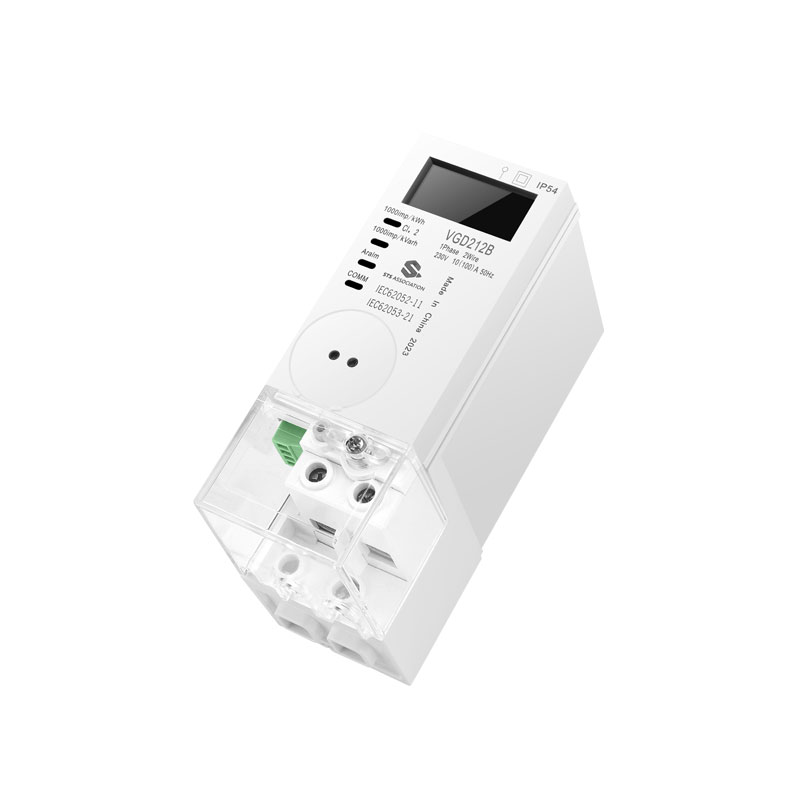

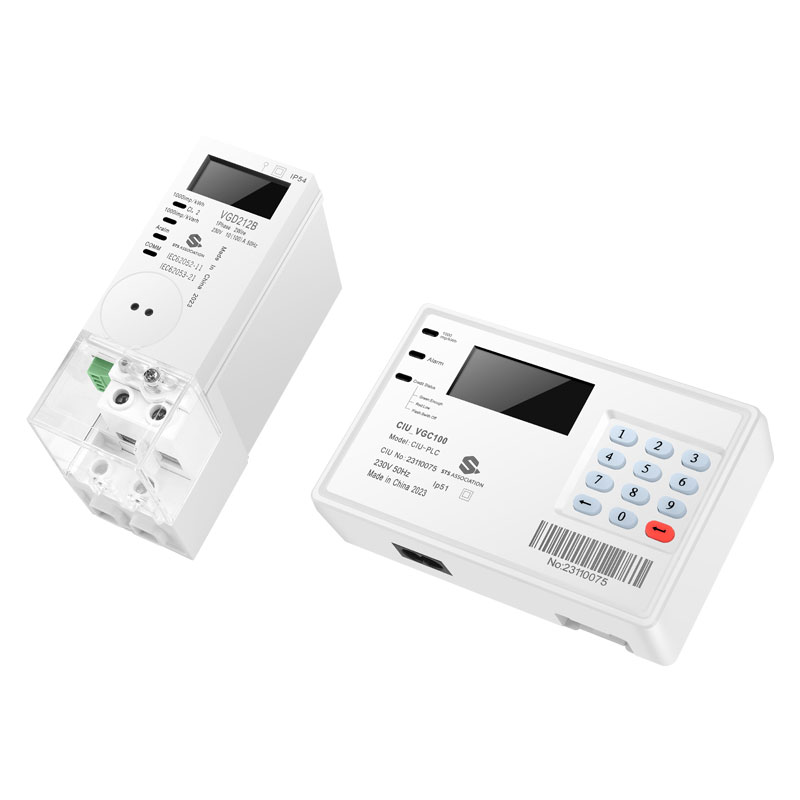

Single Phase Din-rail Para Meter

Xinkong Singulum phase strepitus rail para meter. Hoc metrum destinatum pro residentialibus consumers , Providens fundamentum firmum pro inceptis tuis Smart malesuada euismod.

Mitte Inquisitionem

depictio producti

Applicationem

1.Multi-munus electricitatis callidi metri usus est in retiacula unius temporis, duorum filum.

2. Licet recta mensura energiae activae et passivae et parametri trium reticulorum.

3.Designatur pro recipientibus omnium coetuum tariff.

4.Designed totis systematibus captiosis in mente elaborare.

Functionality features

1.Measurement

1P2W connexionem, Dirige nexum

2.Instantaneous values

Voltage, Current, Power, Power, factor, Frequency...

3.Time usus

Ad IV Rates, Quotidie, Weekly, Menstruis, Annuis & Specialibus (usque ad 100)

4.Segmented LCD propono (libitum)

a. Praestare area magnitudine: 36mm x 15.6mm

b. Magnitudinem digiti ostendunt: 4.45mm x 8.8mm

c. Pars magna VIII-Segmentum Display

d. Configurable atuomatic & ostentationem manualem album

e. Propono readable sine principalis potentia

f. Backlight ad augendam readability in low lucis conditionibus (libitum)

5.Load profile

a. Plus XC dies repono (3 canales, 15-minutis intervallis)

b. Repono: Tempus/Status/Energy/Demand/Instanti, Mediocris / Minimum/Maximum Pretio pro Intervallum Duration ...

c. Intervalla Programmabiles

6.Communiations

a. Portum opticum (libitum)

b. RS-485 Multi-Drop (optional) back

c. Communicatio cum systemate remoto utens odule constructo in PLC vel uno modulorum communicationis commutabilium

d. Standard: IEC 62056-21, DLMS/COSEM, STS

e. Locus keypad (libitum)

7. Events & Tamper detectio & Alarms

a. Logging for all events with time notat & state word

b. Provectus Tamper Detection for cover open, terminal cover open, agri magnetici fortis

c. Bypass, versa vice, per intentionem, sub intentione...

8. Securitatis

a.Secure communicationis cum DLMS/COSEM protocollo, inter auctoritatem et encryption

b.Up ad IV Lorem gradus Securitatis

c.Data procuratio omnium portuum aditus

Technical Parameter

Nominal voltage	1.1P2W 120V/240V 2.Operating voltage range 80%...120%Un
Nominal (max) current	5(40)A,5(60)A,5(80)A,5(100)A
Nomen frequentia	50Hzor 60Hz±5%
Satus current	0,4% Ib pro activae 0,5% Ib pro reciprocus (libitum)
Sagacitas	IEC Classis 1/2
Metrum constantem	1000 imp/kWh 1000 imp/kvarh (optional) back
Communicatio portus	Portum optical (libitum) RS-485 Multi-Drop (optional) back
RWP & Time tergum	RWP & Time tergum
Munus button	Nullus
Electronic outputs	RS485 Cochleas
Environmental	Operans dolor:-25°C ad +60°C Terminus dolor: -40°C ad +75°C Repono Range:-40°C ad +80°C Relativum Umor: Usque ad XCV% non densando pro XXX diebus Ingressus Praesidium: IP54 (in porta)
Potentia consummatio	Intentione Circuit (active) ≤2W Circuitus intentionis (apparet)<10VA Current Circuit≤ 4VA
Nulla vis EMC	AC voltage test 4.4kV Impetus voltage test 8KV Missorum electrostaticarum (Contactus obit) 8KV Electrostatic vomitus (Aeris obit) 15KV Surge immunitatem test 6KV Fast caducum erupit test 4.4KV Electromagnetica RF agri (80MHz ad 2000MHz) 10V/m (currente); 30V/m (sine current)
Nulla tutela	Classis II
signare	Screw Ultrasonic glutino
Pondus	Approx.0.75kg
Dimension(H xWx D)	Withe brevis terminatio cover，144mmx54mm x 95mm
