Domus mechanica caloris metrorum lineamenta altae accurationis, stabilis operationis, longae vitae usus, nullam subiectam aquae inferioris et humilem conservandi sumptus .DN15 Calor ultrasonicus Meterwith Lora vel Lorawam late adhiberi potest late in coacto vel regionali caloris systemate vel domo separato mensurandi. in media caeli conditio ratio

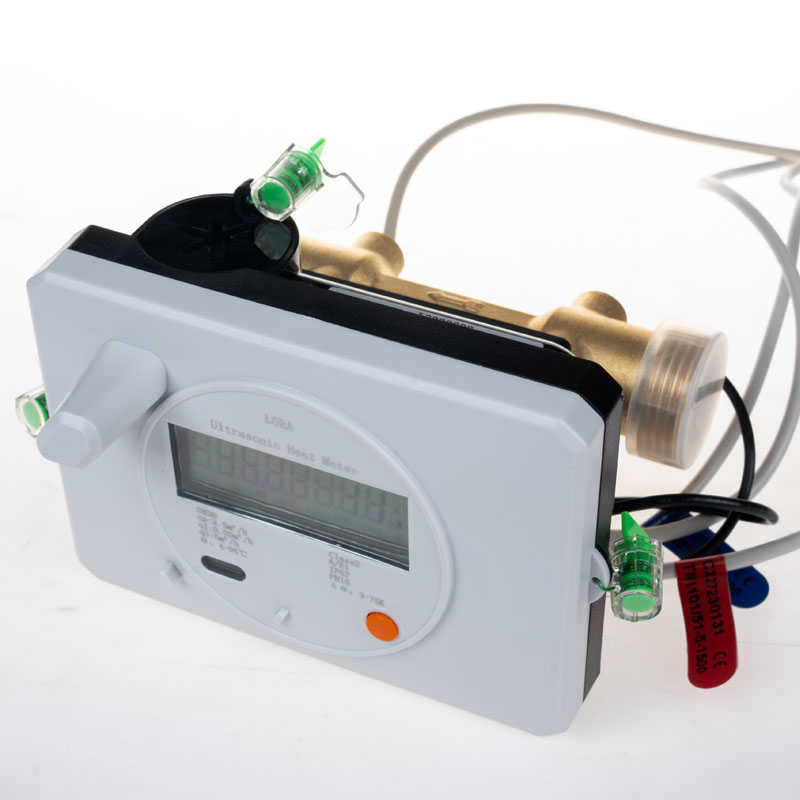

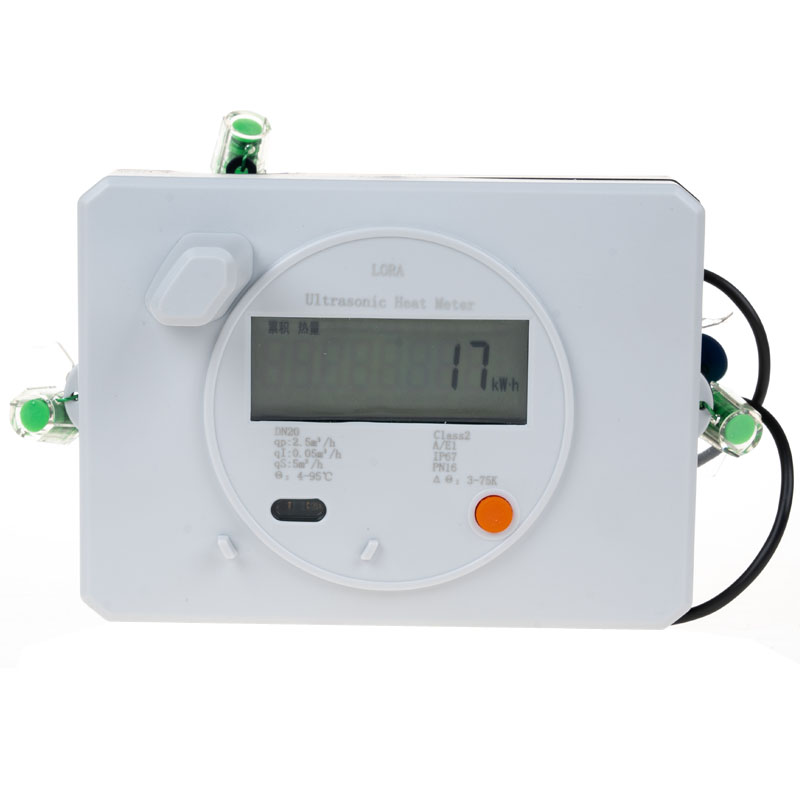

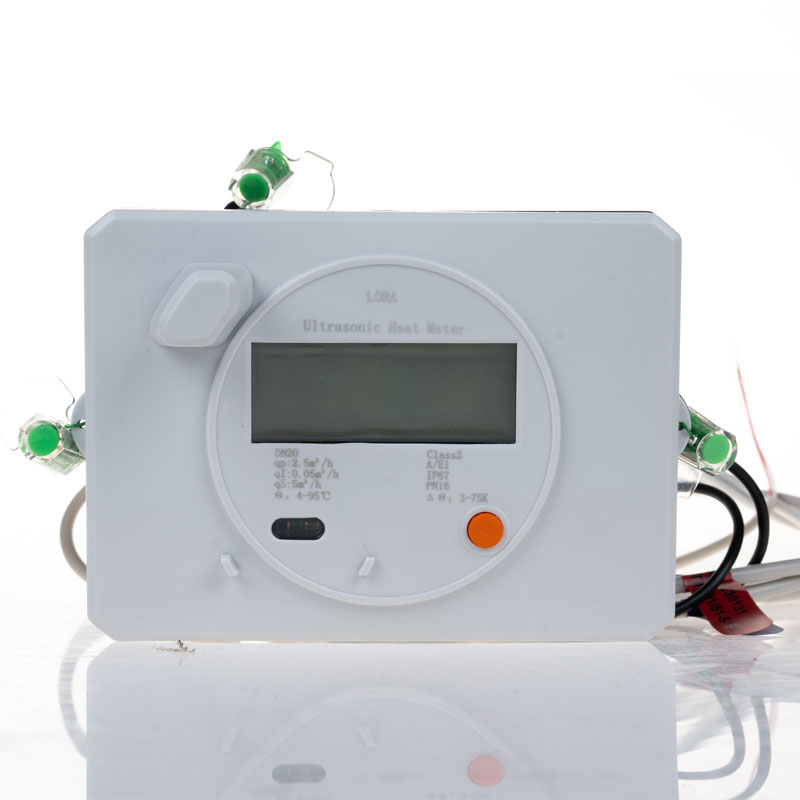

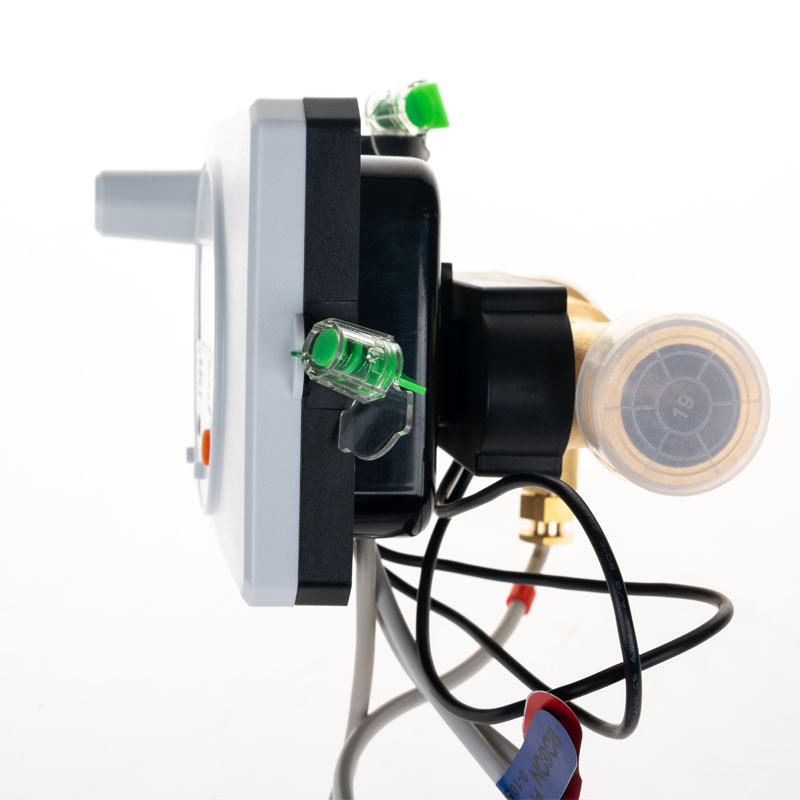

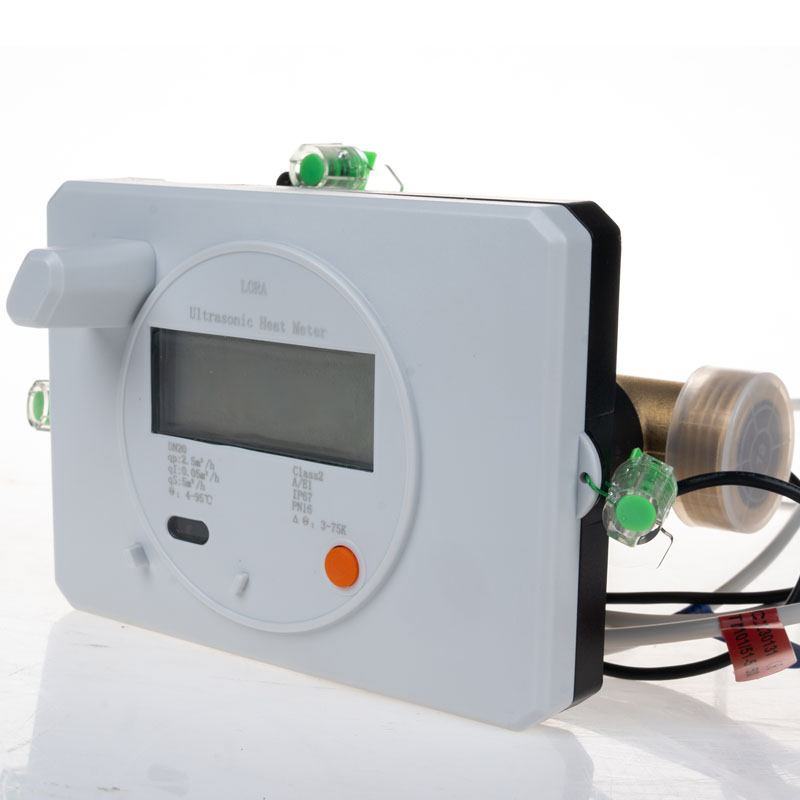

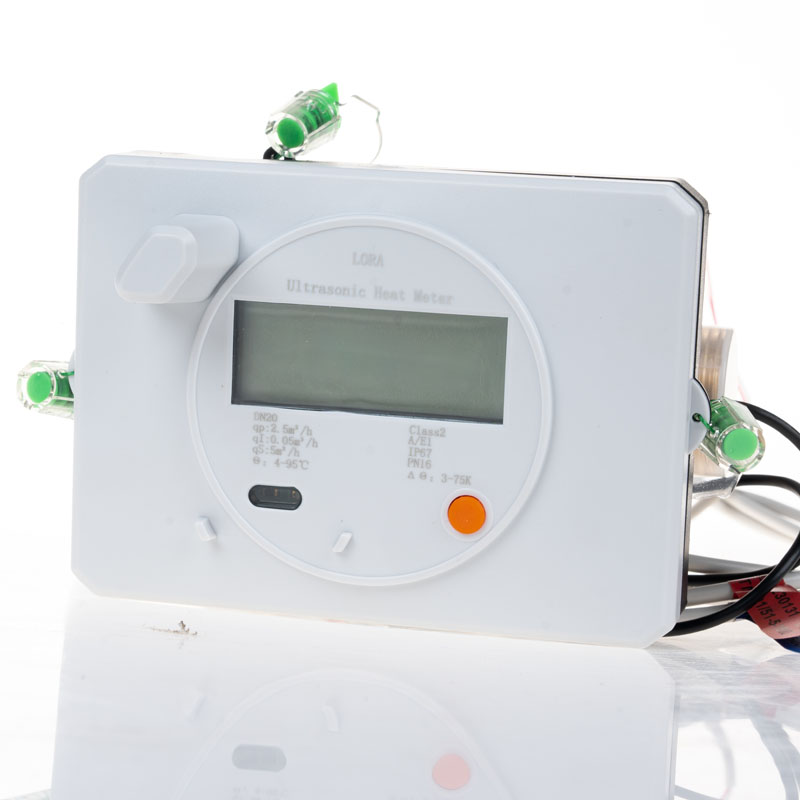

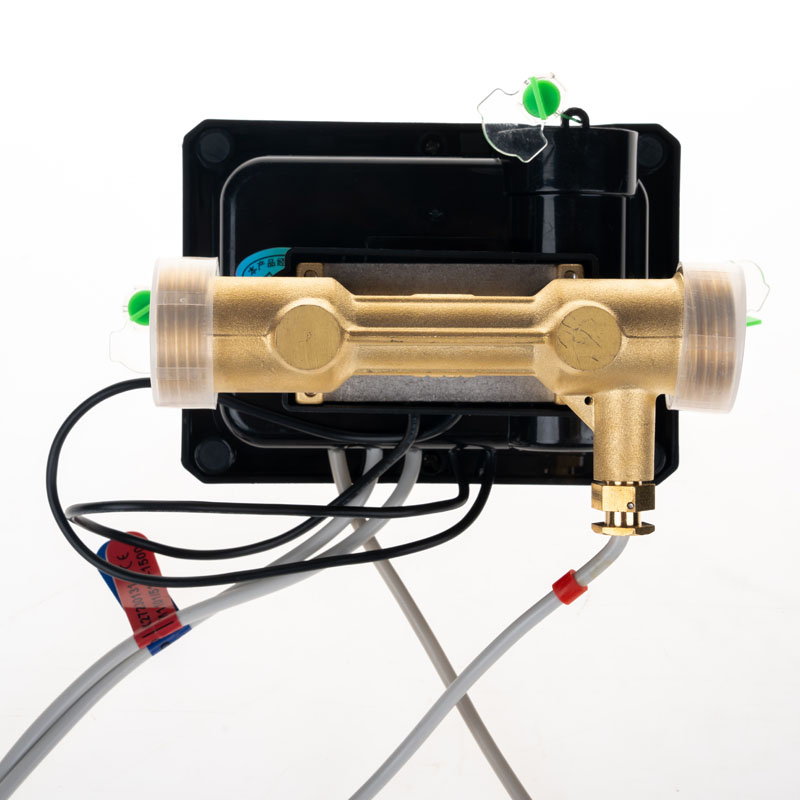

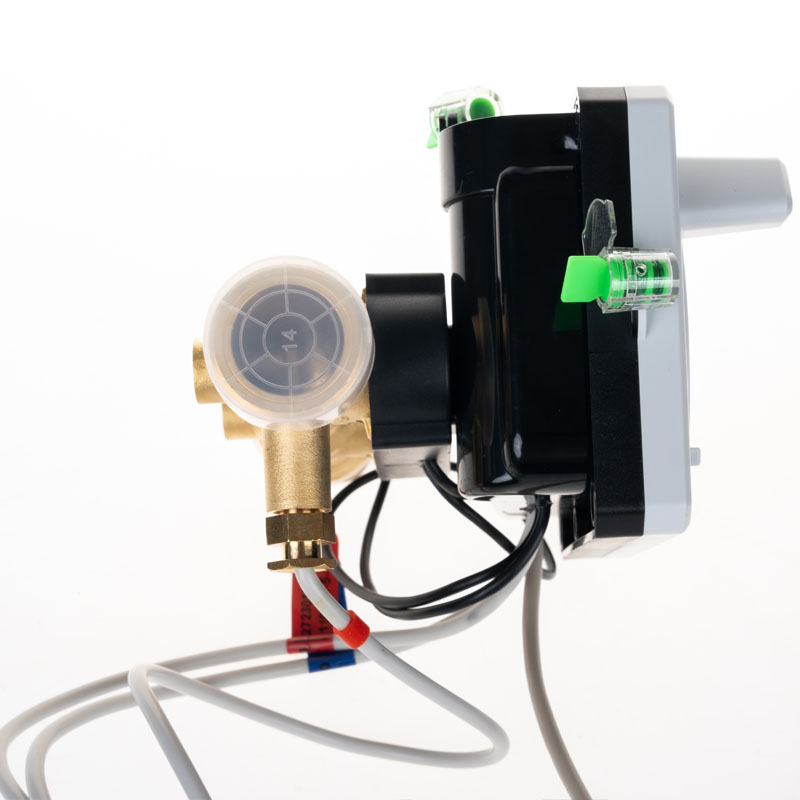

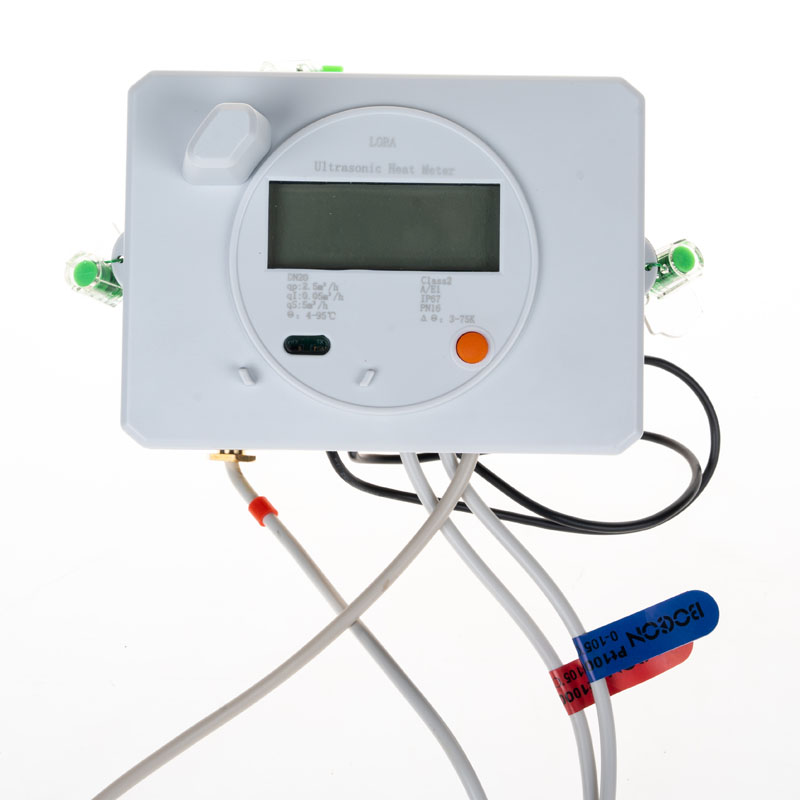

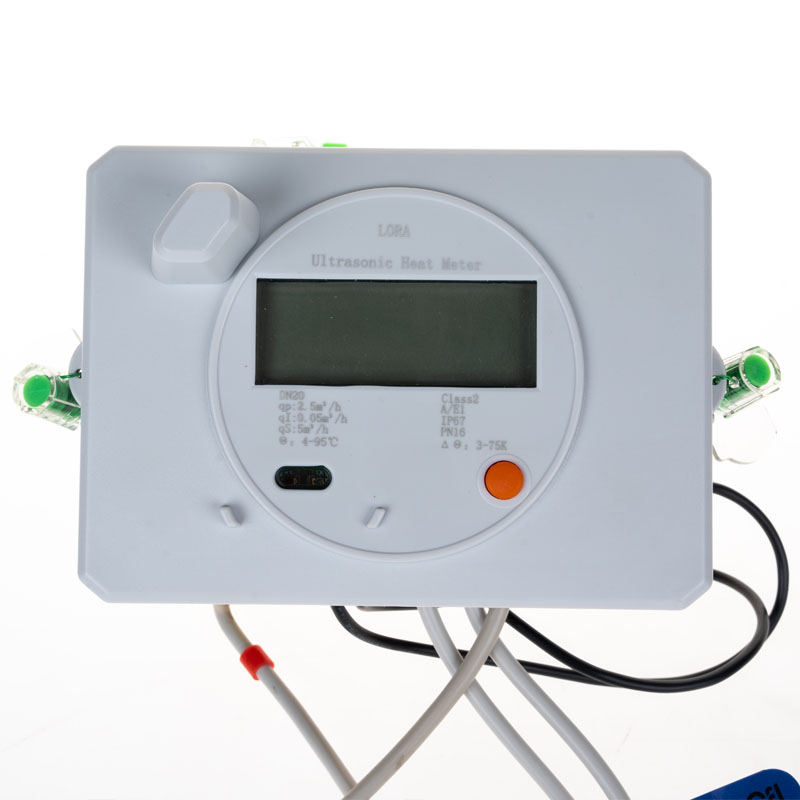

Xinkong DN15 Ultrasonic Heat Meterwith Lora or Lorawam Introduction
Nominal Diameter |
15 |
20 |
25 |
32 |
40 |
|
Dimension |
L |
110 |
130 |
160 |
180 |
200 |
W |
87 |
87 |
87 |
85 |
85 |
|
H |
1011 |
101 |
101 |
125 |
130 |
|
Max fluxus (m*3/h) |
3 |
5 |
7 |
12 |
20 |
|
Norma fluxus (m *3/h) |
1.5 |
2.5 |
3.5 |
6 |
10 |
|
Min fluxus (m*3/h) |
0.03 |
0.05 |
0.07 |
0.12 |
0.2 |
|
Max fluxus Lectio |
999999.99(m3) |
|||||
Max calor Lectio |
99999999(KW·h) |
|||||
Potentia copia |
3.6VDC |
|||||
vita altilium |
> VI annis (Lithium altilium) |
|||||
Sagaciter classis |
Classis 2 |
|||||
Modus communicationis |
Infrared interface , NB-IOT/LoRa/M-Bus/RS-485 |
|||||
Press damnum |
≤ 0.025 Mpa (sub normalibus fluxus) |
|||||
IP classis |
IP 68 |
|||||
Temperatus range |
(0--95) |
|||||
Temperatus differentia range |
(3--60) k |
|||||
Satus caliditas differentia |
0.01k |
|||||
Sensorem temperatus |
Pt 1000 |
|||||
Ambientium, temperatus |
+5℃ - +55℃ |
|||||
Ambiens gradu |
Level A |
|||||
Institutionem |
Horizontalis / vertical institutionem |
|||||
Monitor |
VIII numeri |
|||||
Longitudo temperatus sensorem |
1.5 m |
|||||
opus current |
45uA |
|||||
Data repono |
Historica notitia repono usque ad ultimum XXIV menses |
